Unrivaled Endurance. Limitless Possibilities.

IF1200

Built for complex payloads and demanding field operations.

IF1200, bare platform. Designed with the clearance and lift for large-format remote sensing payloads.

Image Details

43MIN

MAX FLIGHT TIME

56MPH

MAX SPEED

19.1LBS

MAX PAYLOAD CAPACITY

MISSION-READY PERFORMANCE

Solutions

SURVEYING & MAPPING

Accurate data collection with support for photogrammetry, multispectral, and LiDAR sensors.

EXPLORE SURVEY & MAPPING

MULTI-PAYLOAD CAPABILITY

Built to support advanced sensors and mission-specific tools. The IF1200 enables complex workflows that require higher lift and sustained performance.

READ CASE STUDY

IF1200 airborne with a full survey stack: MicaSense RedEdge, Sony A6500, and YellowScan Navigator LiDAR. Power, precision, and payload capacity in one platform.

Image Details

ADVANCED PAYLOAD OPTIONS

One platform. Greater capability.
The IF1200 supports high-performance sensors and complex payloads, giving teams the lift and flexibility required for advanced mission profiles.

VIEW ALL PAYLOADS

Optical Cameras

High-Resolution Mapping & Inspection

High-resolution imaging for mapping, inspection, and documentation.

VIEW CATEGORY

EO/IR Cameras

Thermal Inspection & Search-and-Rescue

Thermal and visual insight for inspection and situational awareness.

VIEW CATEGORY

Multispectral Sensors

Agriculture & Environmental Analysis

Actionable data for agriculture, environmental monitoring, and research.

VIEW CATEGORY

Geophysical & Specialized Sensors

Subsurface & Utility Inspection

Support for custom and emerging payloads tailored to unique missions.

VIEW CATEGORY

LiDAR

3D Mapping & Terrain Modeling

Accurate terrain and structure modeling across complex environments.

VIEW CATEGORY

Brian Leiser, co-owner of Redefined Horizons

“We needed to capture every detail, from elevation contours to buried infrastructure. The IF1200 provided the endurance and payload capacity to accomplish this efficiently.”

VIEW CASE STUDY

CASE STUDIES

PROVEN IN THE FIELD

Deployed daily across survey, inspection, and infrastructure missions nationwide.

Surveying the Sand with The IF1200 & YellowScan MAPPER+

Coastal environments are in constant flux. Shifting dunes, rising sea levels, and storm-driven erosion reshape the shoreline with every passing season. For scientists, land managers, and local governments, understanding these changes is not just academic. It's essential to protect infrastructure, preserve ecosystems, and plan for an uncertain future.

Above the Fissures: Drone LiDAR in Action

On the bluffs of the California coast, the ground tells its own story. For more than a year, Southern California Edison (SCE) has been monitoring ground fissures that slowly advance along the bluffs

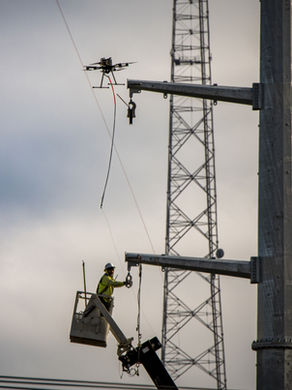

Utility Line Installation: How the IF1200 Streamlines Rope Pull Operations

“Every drop was performed with pinpoint accuracy … the aircraft handled payloads confidently with no drift or disruption.” Quanta Aviation Services deployed the IF1200 across an active railyard to string pilot rope up to 800 ft spans, replacing labor-intensive rigging. The drone’s precision, stability, and quick-release system cut setup time, reduced crew exposure near live rail lines, and maintained tight control even under complex conditions.

2 3

EXPLORE REAL MISSIONS

Two Options Available

CHOOSE YOUR GROUND CONTROL STATION

Configuration options matched to your workflow.

GS-ONE

7-inch Sunlight-Readable Touchscreen

2,000-nit daylight-viewable display
Hot-swappable battery system
Rugged enclosure for field operations
Up to 5 hours of runtime
Transmission range up to 6 miles

VIEW GS-ONE

HERELINK

5.46-inch Touchscreen with 1,000-NIT Brightness

Built-in 4,950 mAh Li-ion battery
Customizable buttons and control wheel
2.4 GHz transmission frequency
Transmission range up to 12 miles

VIEW HERELINK

Fly with Confidence

SUPPORT THAT SCALES WITH YOUR OPERATION

From onboarding and training to documentation and long-term service, the IF1200 is backed by support resources designed to keep teams operational and confident in the field.

VIEW SUPPORT RESOURCES

AIRCRAFT SPECS

Engineered for heavy-lift operations across survey, inspection, and specialized missions.

Specification	Metric Value
Max Ascent Speed	5m/s
Max Descent Speed	2.5m/s
Max Air Speed	25m/s
Max Wind Resistance	12m/s, 15m/s gusts
Max Tilt Angle	30°
Max Angular Velocity	Tilt: 300°/s, Yaw: 45°/s
Operating Temperature	-20°C ~ 45°C
Service Ceiling (with given payload)	3.9km (12,8000 ft) w/4 kg
	2.2 km (7,200 ft) w/ 8.7 kg

Component	Specification
Flight Controller	CubePilot Cube Blue H7, Triple Redundant IMU
GNSS / Compass	Dual CubePilot Here3 M8P
Payload Power Rails	12s Battery Voltage, 5v, 12v/15v 18v, 44.4v
Payload Interface	IF1200A Universal Payload Interface 2.1
Operating Software	Copter by Ardupilot

Specification	Metric Value	Imperial Value
Diagonal Size (propeller center to center)	1,025 mm	40.4 inches
Unfolded Size (flight ready, WxLxH)	165.5 x 154 x 76.5 cm	65.1 x 60.6 x 30.2 inches
Folded Size (stow, WxLxH)	47.5 x 49.5 x 47 cm	18.7 x 19.5 x 18.5 inches
Empty Weight (w/o batteries)	7.8 kg	17.2 lbs
Weight w/ Batteries	16.3 kg	35.9 lbs
Max Gross Takeoff Weight	25.0 kg	55.0 lbs
Max Payload Capacity	8.7 kg	19.1 lbs
Transport Case Size (WxLxH)	64.8 x 64.8 x 58.4 cm	25.5 x 25.5 x 23.0 inches
Transport Case Weight (w/ aircraft & GCS)	29.0 kg	64 lbs

Flight Mode	Description
Position Hold	Maintains GPS position and altitude with responsive controls for faster speeds.
Loiter	Holds GPS position and altitude for slow, precise, and stable flying.
Auto	Executes pre-defined waypoint mission
RTL	Auto returns to takeoff location and lands
Land	Auto land while maintaining horizontal position
Altitude Hold	Holds altitude only, failsafe mode if GPS signal lost

Get Equipped. Get Flying.

READY FOR HEAVY-LIFT OPERATIONS

The IF1200 delivers dependable performance for teams operating complex payloads in challenging environments.

TALK TO AN EXPERT

ORDER ONLINE
